LT-904 LTech 4 channels constant voltage DMX512 RDM decoder
- Buy 32 for $34.25 each and save 7%
LT-904-DIP LTech
Made in Zhuhai of China with 5 years warranty, genuine version, high quality, not cheap copycat
We are the distributor of LTech products, directly from factory, good price
Click here to know more detailed specification parameters about LTech LT-904

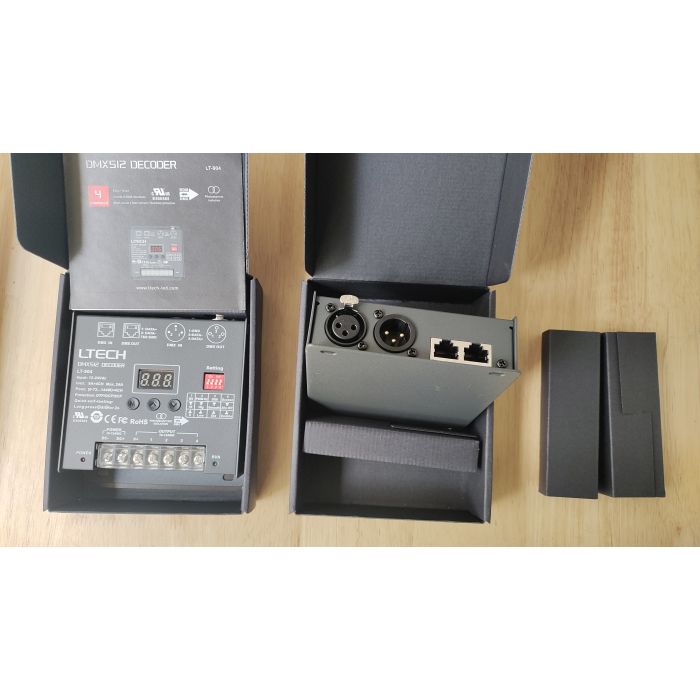

LTech LT-904
Product Introduction
1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.
2. Easy operation with digital display and the touch buttons.
3. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.
4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.
5. With short circuit protection and over current protection, as well as warning function when fault.
6. With fast self-testing function.
7. High/low PWM frequency for optional
8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Technical Specifications
Model: LT-904
Input Signal: DMX512/RDM
DMX Interface: 3-pin XLR, RJ45
Input Voltage: DC 12~24V
Current Load: 6A×4CH Max. 24A
Output Power: (0~72W...144W) × 4CH, Max. 576W
Grey Level: 8bit (256 levels) / 16bit (65536 levels
Protection: Shortcut / Over current
Working Temp.: -30°C~65°C
Dimensions: L122×W110×H37mm
Package Size: L127×W123×H41mm
Weight (G.W.): 550g
