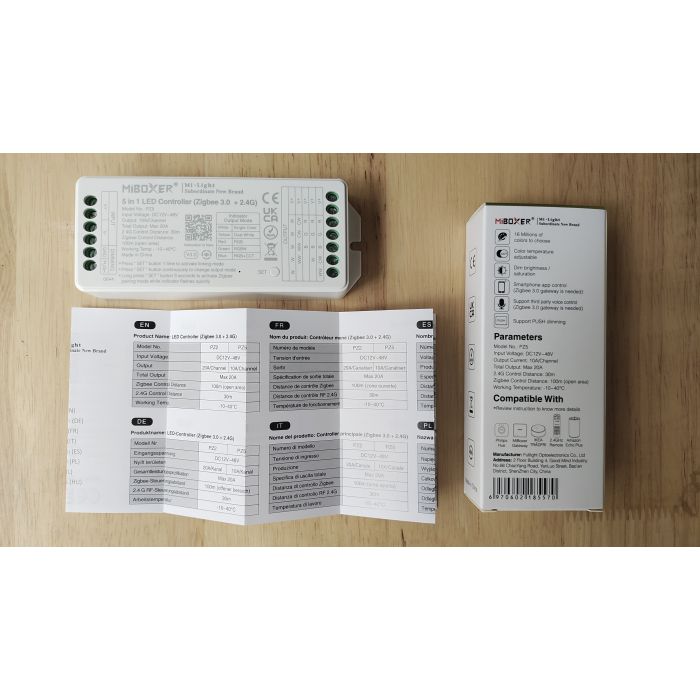

MiBoxer PZ5 MiLight 5 in 1 Zigbee3.0 + 2.4G LED controller

MiBoxer PZ5 MiLight 5 in 1 Zigbee3.0 + 2.4G LED controller

Product follow zigbee 3.0 standard protocol

Zigbee Contrl distance: 100m (open area)

Compatible with Mi-Light / MiBoxer 2.4GHz series remote

2.4G RF Remote Control Distance: 30 meters

16 Millions of colors to choose, color temperature adjustable, brightness and saturation controllable

Support PUSH dimming

Switching 5 output mode via one button (Single color / Dual white / RGB / RGBW / RGB+CCT)

Made by new Zigbee 3.0 wireless transmitting technology with low power consumption, strong ability to build network automatically and anti-interference. with MiBoxer Zigbee gateway to get wireless dimming color, remote control, timing control, group control, music rhythm function. Support 2.4G RF remote control.

16 Millions of colors to choose



Color temperature adjustable



Dim brightness / Saturation



Follow Zigbee 3.0 standard protocol



Support Zigbee 3.0 remote control



2.4G Remote control distance 30m



Auto-transmitting & Synchronization



App control (Zigbee 3.0 gateway is needed)



Third party voice control (Zigbee 3.0 gateway is needed)



DMX512 controllable (Only for RGB+CCT output mode, FUTD01 transmitter is needed)



Product Name: 5 in 1 LED Controller (Zigbee 3.0 +2.4G)

Model No.: PZ5

Input Voltage: DC12~48V

Output: 10A/Channel

Total Output: Max 20A

Communication Protocol: Zigbee 3.0 + 2.4GHz

Control Distance: Zigbee: 100m (open area)
2.4G RF: 30m

Working Temperature: -10~40°C

Wireless Technology: Zigbee 802.15.4

Wireless Frequency: 2.400-2.480GHz





Support Tuya smart app control (Zigbee 3.0 gateway is needed)

Support third party voice control (Zigbee 3.0 gateway is needed)



It can enter into Philips Hue, IKEA TRÅDFRI, AMAZON Echo Plus (2nd Gen), Echo (4th Gen), Echo Studio, Echo show (2.Gen) standard zigbee 3.0 gateway



Connection Diagram

single color

Dual white

RGB

RGBW

RGB+CCT
