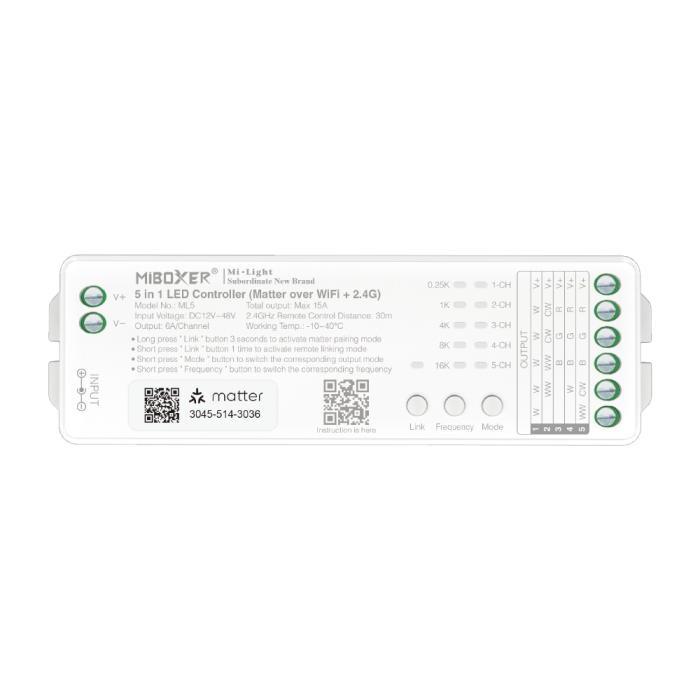

MiBoxer ML5 MiLight Matter Over WiFi+2.4GHz 5 in 1 controller
- Buy 100 for $11.50 each and save 8%
MiBoxer ML5 MiLight Matter Over WiFi+2.4GHz 5 in 1 controller
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer ML5 MiLight Matter Over WiFi+2.4GHz 5 in 1 controller
Certified Matter Over Wifi, Matter standard protocol, support to Collaborate with multi platforms
Wide compatibility, collaborate with products from different brands which comply with Matter ecosystem
Simple configuration, easily pairing via QR code
Features
Certified Matter Over Wifi, Matter standard protocol, support to Collaborate with multi platforms
Wide compatibility, collaborate with products from different brands which comply with Matter ecosystem
Simple configuration, easily pairing via QR code
Voice control, compatible with Siri, Google Assistant, Alexa portable control
Support to set up forecast scenes and select scenes based on different lighting requirements
Max work with 12pcs remote control ( distance 30 meters)
Built-in 18 dynamic modes like jumping,fading( only control via remote)
Auto transmitting: transmit signal to another one automatically and extend countless distance
Auto synchronization:same dynamic mode can synchronize together
Support DND mode, usually used in power failure area to save power
Support multi platforms like Apple Home Kit、Amazon Alexa、Google Home、SmartThings Tuya smart
Product Name: 5 in 1 Controller (Matter Over WiFi+2.4GHz)
Model No.: ML5
Input Voltage: DC12V-48V
Output Current: 6A/ Single channel
Total Output: Maximum 15A
Protocol: WiFi+2.4G RF
WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Control distance: 30 meters
IP Rate: 30 meters
Working Temperature: -10~40°C
Dimming Grayscale: 4096 Levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
EMC Standard (EMC):
ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD):
EN 61347-1: 2015+A1:2021
EN 61347-2-11: 2001+A1: 2019
Radio Equipment (RED): ETSI EN 300 440 v 2.2.1
Certification: CE, EMC, RED
Support multi APP platform ( no need 2.4G gateway)
Support third party voice control
Connection Diagram
