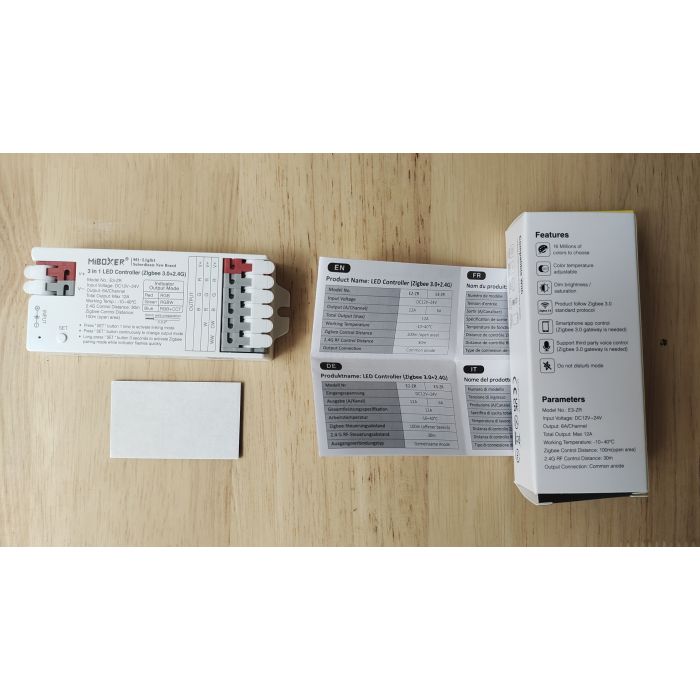

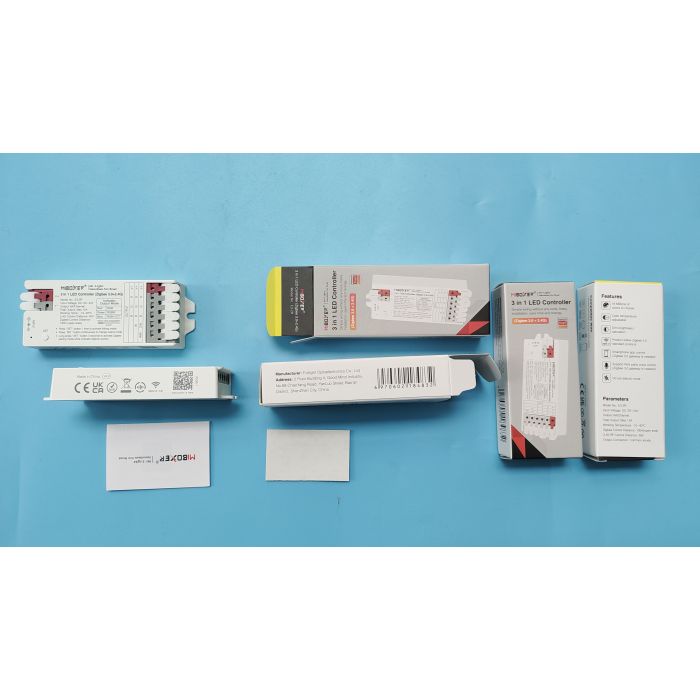

MiBoxer E3-ZR MiLight 3 in 1 Zigbee3.0 + 2.4G LED controller

MiBoxer E3-ZR MiLight 3 in 1 Zigbee3.0 + 2.4G LED controller

Tool-free instant wiring

Product follow zigbee 3.0 standard protocol

Zigbee Control distance: 100m (open area)

Compatible with Mi-Light / MiBoxer 2.4GHz series remote

Switching 3 output mode via one button (RGB / RGBW / RGB+CCT)

Product Name: 3 in 1 LED Controller (Zigbee 3.0 +2.4G)

Model No.: E3-ZR

Input Voltage: DC12~24V

Output: 6A/Channel

Total Output: Max 12A

Communication Protocol: Zigbee 3.0 + 2.4GHz

Control Distance: Zigbee: 100m (open area)
2.4G RF: 30m

Working Temperature: -10~40°C

Wireless Technology: Zigbee 802.15.4

Wireless Frequency: 2.400-2.480GHz



Signal transmitting

One lighting fixtures can transmit the signals from the remote control to another lighting fixtures within 30m, as long as there is a lighting fixtures within 30m, the remote control distance can be limitless.



Modes synchronization

Different lighting fixtures can work synchronously when they are started at different times, controlled by the same remote, under same dynamic mode and within 30m distance.



PWM high frequency / low frequency

High frequency / low frequency can be switched

Low frequency (250Hz), High frequency (16KHz)



[Tuya Smart] APP control

Need to match Zigbee 3.0 gateway to experience more functions (Zigbee 3.0 gateway needs to be purchased separately)

Scene customization​

Music rhythm

Do not disturb mode

Timing setting

Device sharing

Tap-to-Run & automation



It can enter into Philips Hue, IKEA TRADFRI, Amazon ECHO Plus ( 2nd Gen), ECHO (4th Gen), ECHO Studio, ECHO Show (2. Gen) standard Zigbee 3.0 gateway.



Support DMX512 Controllable

Only for RGB+CCT output mode, Need DMX512 LED transmitter



LED light interface

Classic PC material high quality

Two power interfaces (Wiring port / DC5.5*2.1)

SET button

Ambience Showing
