R4-5A LTech 2.4GHz wireless 4-in-1 RGBW 4 channels LED controller

In stock
  • Buy 51 for $32.75 each and save 9%

LTech R4-5A

Made in Zhuhai of China, reliable quality with 5 years warranty

Direct from factory, good price, RGBW quad colors control

The 4 channels DMX512 RGBor RGBW controller will drive any of our RGB flexible strip lighting with the added advantage of driving a fourth channel of either white or amber. 4 channels 2.4G Hz wireless multi-zone receiver/controller designed to be controlled by the DX8 touch panel or WiFi104 controller for larger commercial installations. The driver is suitable for single colour/CT/RGB & RGBW control.

Click here to view the details of R4-5A and WiFi-104

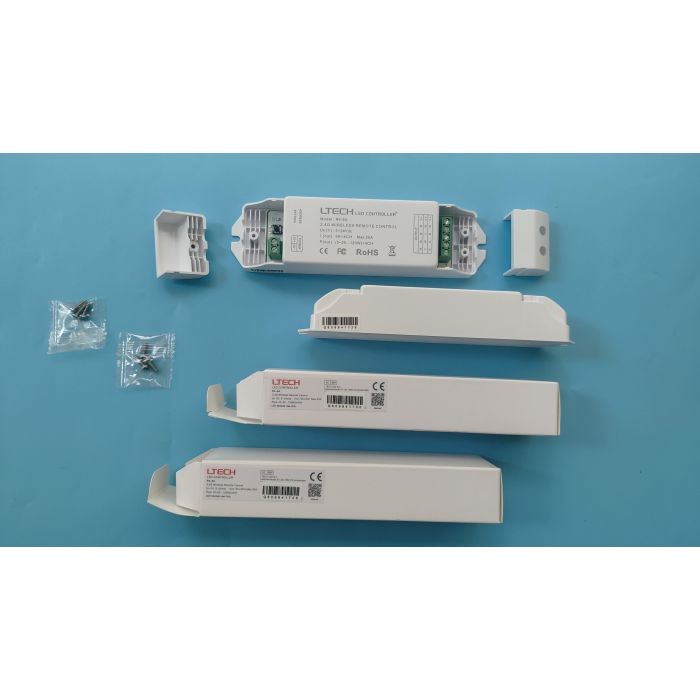

LTech R4-5A

Model: R4-5A

Wireless frequency: 2.4 GHz

Input voltage: DC5V~DC24V

Maximum current load: 5A × 4CH Max 20A

Max output power: 100W/240W/480W (5V/12V/24V)

Remote distance: 25 meters

Working temperature: -20°C~40°C

Product size: L 175 × W 44 × H 30 mm

The LED receiver controller R4-5A can be used in combination with WiFi 104 or DX8 controller. It has four outputs and can be placed up to 50 meters in an open environment from the WiFi-104 and 30 meters from the DX8 within an open enviroment. Consider walls and other obstacles, which reduces the range.

Note:  the R4-5A cannot work as a stand-alone unit, but the optional WiFI-104 controller or DX8 touch panel will give you great flexibility to control the color changing.

R4-5A wiring diagram:
