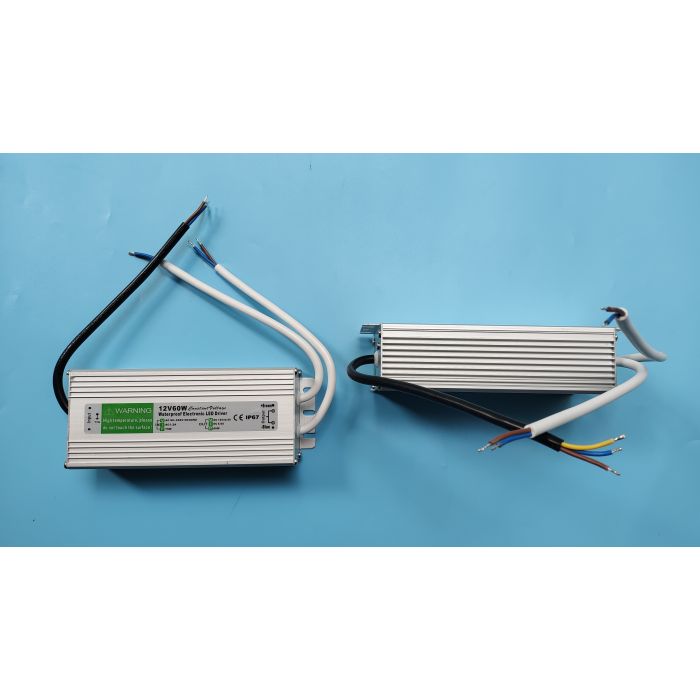

60W 12V 24V IP67 outdoor waterproof LED power supply

$12.50
In stock
SKU
1151
  • Buy 100 for $9.95 each and save 20%
  • Buy 1000 for $8.75 each and save 30%

direct from factory, good price

Input

Voltage Range: AC 90~250V

Frequency Range: 47~63Hz

Efficency: >83%

AC current (max): 0.6A @ 220V, 1.1A @ 115V

AC Inrush Current: 40A @ 230V



Output

DC Voltage: 12V (default) / 24V +/- 3%

Rated Current: 5.0/2.5A

Rated Power: 60W

Ripple & Noise (max): mVp-p < 1% Uout

Load Regulation: +/- 1%

Setup Time: 500ms

Rise Time: 20ms

Hold UP Time: 30ms @ 230V, 10ms @ 115V



Protection

Short Circuit Protection

Overload Protection: 130~150%

Over Voltage Protection: 115~135%



Environment

Working Temperature: -20~50C

Working Humidity: 20%~90% RH

Storage Temperature: -40~60C

Storage Humidity: 20%~95% RH



Safety Compliance

Safety Standard: meet CE, FCC, GB4943

Withstand Voltage: IP/OP 5mA 2KVAc

Isolation Resistance: IP/OP 100M Ohms



Waterproof Rank

Waterproof Rank: > IP67



Size

Dimension: 133 x 50 x 25mm

Weight: 340 gram
