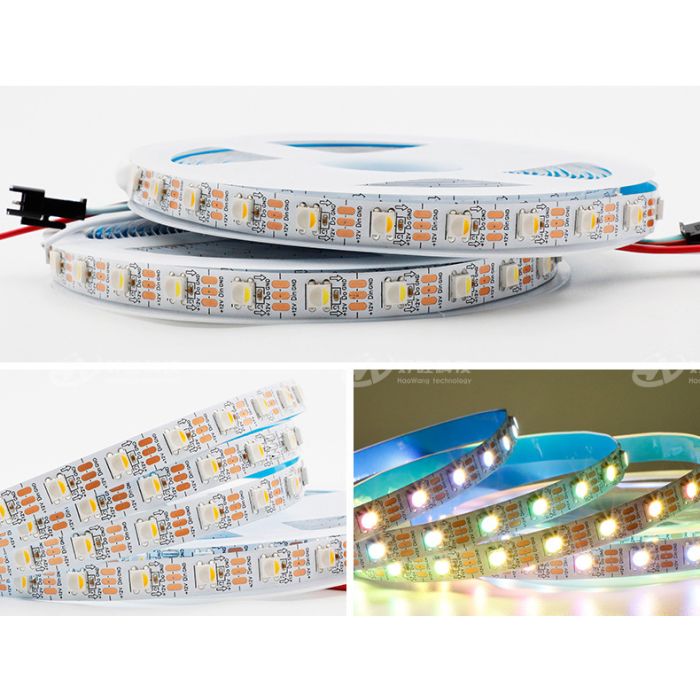

12V 5 meters 300 LEDs smart programmable SK6812 RGBW 5050 light strip
- Buy 100 for $34.75 each and save 11%
- Buy 1000 for $33.75 each and save 13%
SK6812 IC is integrated with SMD RGBW 4-in-1 5050 LED, SMD 5050 LED has 16 million vivid RGBW dream colors, and every 3 LEDs can be addressable as a pixel, SK6812 is the upgrade of WS2812B, excellent performance
Made in Shenzhen of China, high quality with 2 years warranty, direct from factory, good price
We are LED light factory which can supply customized LED products, for big quantity products, please contact us.
4-in-1 RGBW SK6812-5050 is a set of control and electrical luminescence in one of the intelligent external control LED light source. Each component is a pixel. Pixel internal contains. Intelligent digital interface data latch signal shaping amplifier driver, power regulator circuit, built-in constant current circuit, high-precision RC oscillator, the output drive using patented PWM technology, effectively ensure the color of light within the pixel high consistency.
Data protocol using unipolar return code communication, pixel point after power-on reset, DIN side to accept the data transmitted from the controller, first sent over the 24-bit data is extracted by the first pixel, sent to the pixel point internal data latch, the remaining data through the internal plastic. Electrical plastic amplification through the DO port began to forward the output to the next cascaded pixels, each passing a pixel transmission, the signal is reduced by 24bit. Pixels using auto-shaping forwarding technology, making the number of pixel points cascaded by signal transmission restrictions, only the limited signal transmission speed requirements.
LED has a low voltage-driven, environmentally friendly energy-saving, high-frequency, scattering angle is large, consistent, low power, long life and so on. Integrate the control electronics into the LEDs, making them simple, small, and easy to install.
Programmable addressable: one pixel control 3 LEDs, every 3 LEDs can be controlled as a pixel, you can use Madrix, Arduino, Adafruit NeoPixel Library, FastLED library and Raspberry Pi, K-1000C etc. to program the animation effects
Top SMD integrated high quality external control single wire serial cascade constant current IC
control power and chip integrated in the SMD RGBW 5050 components, constitute a complete external control pixel, color temperature uniformity and high consistency
Built-in data shaping electrical power, any one pixel after receiving the signal after the waveform shaping and then output, to ensure that the line waveform distortion will increase
Built-in power-on reset and power-down reset, power does not light
gray-scale adjustment circuit (256 gray-scale adjustable)
Led drive special handling, color more balanced
Single-line data transmission, unlimited cascade
plastic enhanced forwarding technology, transmission distance between two points more than 10 meters
Data transmission frequency up to 800Kbps, when the refresh rate at 30 frames per second, the number of cascading less than 1024 points
It is very suitable for large lighting project such as city skyline lighting, building outline decoration, HD advertising screen, shopping malls decoration etc.
IC type: SK6812, individually addressable, each IC built inside a SMD RGBW 5050 LED
Light source: full color SMD RGBW 5050 LED, high intensity and reliability
Light color: RGB+White is default, RGB+Warm White is available
Gray levels: 256
Working voltage: DC 12V safe working voltage
LED quantity: 60 per meter, there are total 300 LEDs on 5 meters length
Pixel number: there are 20 pixels on one meter, 5 meters have total 100 pixels, every 3 LEDs is corresponding to a pixel
Maximum power: each LED is 0.24W, 300 LEDs have total maximum 72W
Beam angle: 120°
Protection level: IP20 non-waterproof is default, IP65 gel waterproof and IP67 silicone tube waterproof are optional
FPCB color: white is default, black is available
Dimension: 5000x10x2.5mm (length * width * thickness)
Working temperature: -40 ~ 70℃
Storage temperature: -50 ~ 80℃
Life span: 50 000 hours
Certifications: CE, RoHS
Light up colorful home life, DIY household lights for hallways, stairs, trails, windows.
Hotels decoration use, theaters, clubs, shopping malls, festivals and performances use.
Architectural decorative lighting, archway, canopy and bridge edge lighting, security lighting and emergency.
Extensively applied in backlighting for signage letters, concealed lighting and advertisement sign lighting.
Applicable for automobile & airplane model decoration, contour lighting or border.
