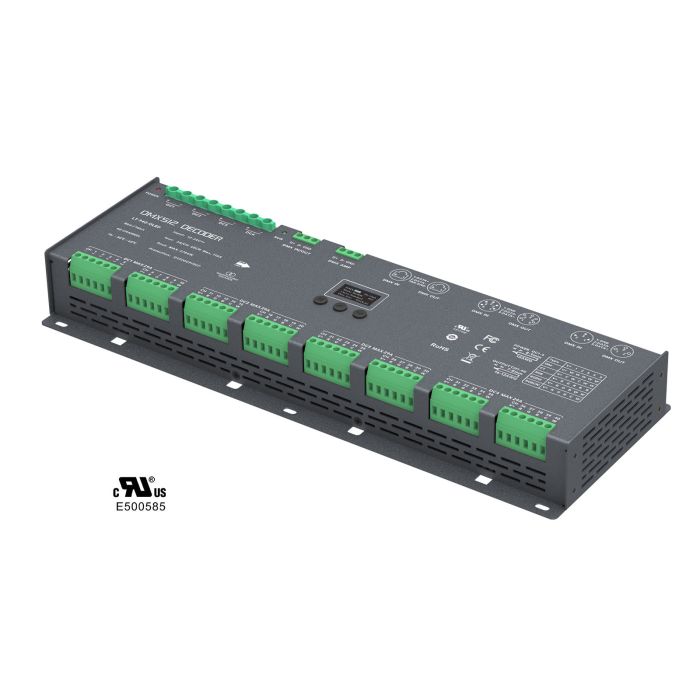

LTech LT-940-OLED 40 channels Constant Voltage DMX Decoder

1、Designed for Hi-power multiple channels application, 40 channels output, and Max. 3A current per channel, up to 2784W output power.

2、The human-computer interaction interface is composed of an OLED screen and 3 buttons, which displays rich content and is simple and fast to operate.

3、The number of DMX channels can be set to CH01/CH02/CH03/CH04/CH05/CH08/CH16/CH24/ CH32/CH40, which can realize independent address independent channel control, or one address to control multiple channels.

4、The PWM frequency can be set to 300/600/1200/1500/1800/2400/3600/7200/10800/14400/ 18000Hz;

5、3-pin XLR, 5-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability, the green terminal also has signal amplifier function.

6、With the operations can be completed via the RDM master console, such as parameters browsing & settings, DMX address settings,equipment recognition, etc.

7、DMX master control mode;

8、With firmware upgrade function.

9、With short circuit, over current and over temp. protection, as well as warning function when a fault occurs.

10、With power-on state management and fast self-testing function.

11、16bit (65536 levels) / 8bit (256 levels) grey level available.

12、Available for standard, linear, LOG or custom 0.1-9.9 dimming curve.

13、The device has 10 built-in personalized lighting effects. You can enter the setting interface of the DMX master mode and select different lighting effects to achieve precise output control of other decoders.

14、Parameters can be set and modified through the RDM master control or mobile phone APP, eliminating the need for high-altitude operations.
