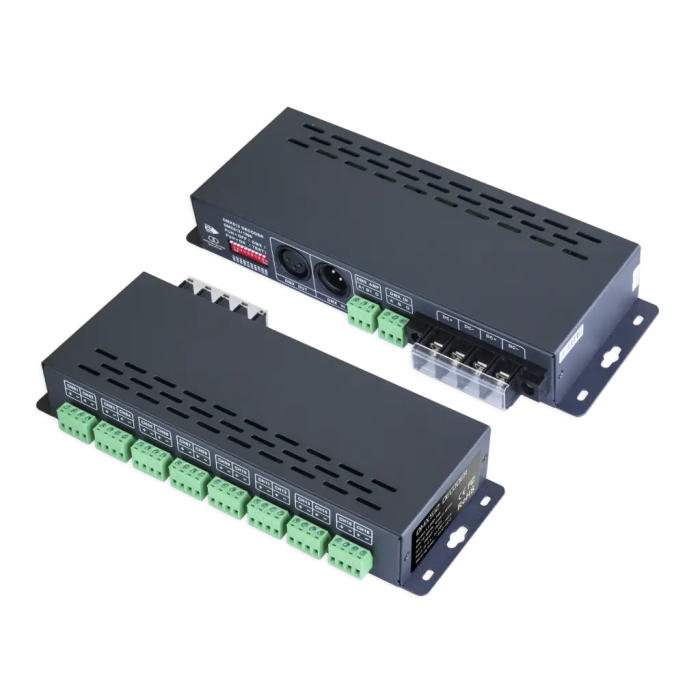

LTech LT-880-700 contant current 700mA 16 channels DMX-PWM decoder
- Buy 30 for $109.00 each and save 13%
LTech LT-880-700 contant current 700mA 16 channels DMX-PWM decoder
Made in Zhuhai of China with 5 years warranty, genuine version, high quality
We are the distributor of LTech products, directly from factory, good price
LTech LT-880-700 contant current 700mA 16 channels DMX-PWM decoder
LT-880-350/LT-880-700 with the standard RDM remote device management protocol, supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX address (DMX master controller must recognize the RDM protocol).
This compact decoder works with DMX512 console. Realize 0-100% brightness and various changing effect.
Equiped with DMX standard 3-pin XLR, RJ45 and green terminal interface, easy to operate. And it can control single color, bi-color, RGB LED lights.
|
LT-880-700 16CH DMX-PWM Decoder |
|
| Input signal | DMX512 |
| Input power | DC12V～DC48V |
| Output voltage | DC3V~DC42V |
| Max load current | 700mA ×16CH |
| Output power | 2.1W~32.2W×16CH Max 515.2W |
| DMX512 socket | XLR-3, Green terminal (with signal amplification function) |
| Dimming range | 0~100% |
| Working temperature | -30℃～65℃ |
| Dimension | L260×W123×H42mm |
| Package Size | L268×W127×H44mm |
| Weight (G.W) | 950g |
