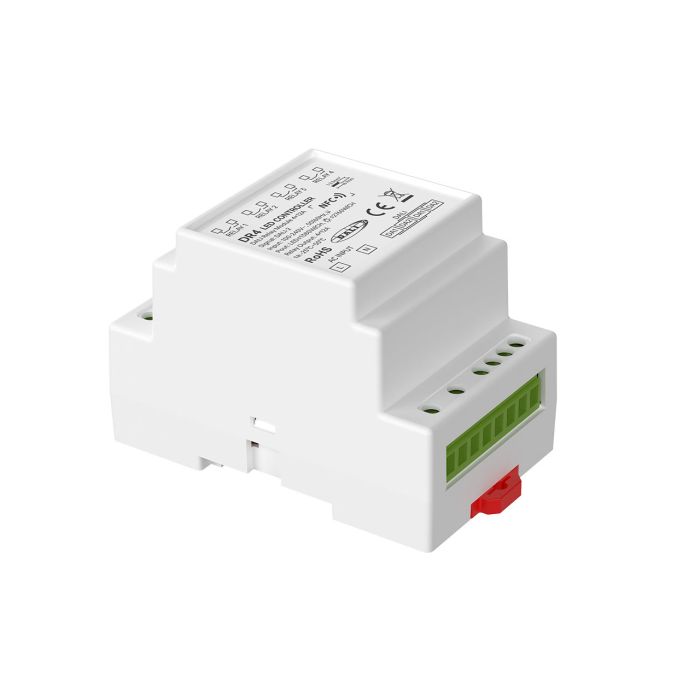

LTech DR4 NFC Programmable 4CH DALI-2 Relay Unit
- Buy 200 for $21.75 each and save 10%
LTech DR4 NFC Programmable 4CH DALI-2 Relay Unit
Made in Zhuhai of China, high quality with 5 years warranty
Genuine version, not phony copycat type
We are the distributor of LTech products, direct from factory, good price
LTech DR4 NFC Programmable 4CH DALI-2 Relay Unit
DALI Relay Module with Zero-Cross Detection,DALI relay module with zero-cross detection, effectively suppressing the instantaneous surge current when the relay pulls in.
Compliant with DALI-2 standard, in accordance with IEC62386-101, IEC62386-102 and IEC62386-208 standard protocols.
Capable of independently controlling four relays or contactors, compatible with mainstream DALI standard protocols and master control devices on the market, enabling non-dimmable luminaires to access the DALI lighting system.
DALI addresses can be set independently, and grouping and scene control can be realized via DALI master controller.
Supports setting of DALI first address, power-on status, system failure status and DALI scenes via the NFC Lighting APP.
Single channel supports a maximum current of 12A, with a built-in independent fuse for each channel to ensure safe operation of the device.
Wide voltage power supply: 100–240V~.
DIN rail mounting, compatible with standard 35mm DIN rail.
