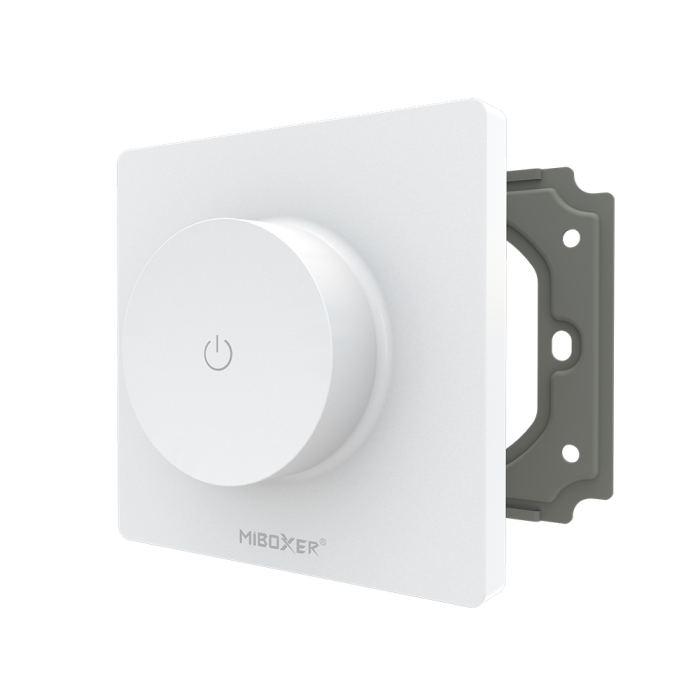

MiBoxer TRI-K1 MiLight Rotating Triac dimmer
- Buy 100 for $11.25 each and save 10%
MiBoxer TRI-K1 MiLight Rotating Triac dimmer
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer TRI-K1 MiLight Rotating Triac dimmer
Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps
Support set up min brightness
Brightness adjustable
Support 2.4G remote control, control distance 30meters
Features
Adopt 2.4G wireless transmission technology, low power consumption, self-organizing network, anti-interference. Relay signal transmission, meet the lighting control needs of home and commercial space.
Support 2.4G RF remote control. Widely used in home, hotel and commercial lighting.
Built-in temperature detection switch, overload protection, adopt post-cut phase dimming technology
Support minimum brightness setting
0~100% stepless dimming, no flicker
Auto-forwarding: Auto-forward the remote control signal to another lamp, making the remote control distance infinite
Support “Tuya Smart” APP control (2.4G gateway is needed)
Support Alexa, Google Assistant, Yandex Alice, Tmall Genie, Baidu Xiaodu, (2.4G gateway is needed)
Product Name: Rotating Triac dimmer
Model No.: TRI-K1
Input Voltage: 100-240V~ 50/60Hz
Output Current: Max 1.36A
Output Power:
150W @110V;
300W @220V
Control Signal: 2.4GHz RF
Control Distance: 30 meters
IP Rate: IP20
Working Temperature: -10~40°C
EMC Standard (EMC):
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-3 V2.3.2
Safety Standard (LVD):
EN 61347-2-11: 2001+A1: 2019
EN 61347-1: 2015+A1:2021
EN 62493: 2015+A1:2022
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Instructions
Support Tuya smart app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
Connection Diagram
