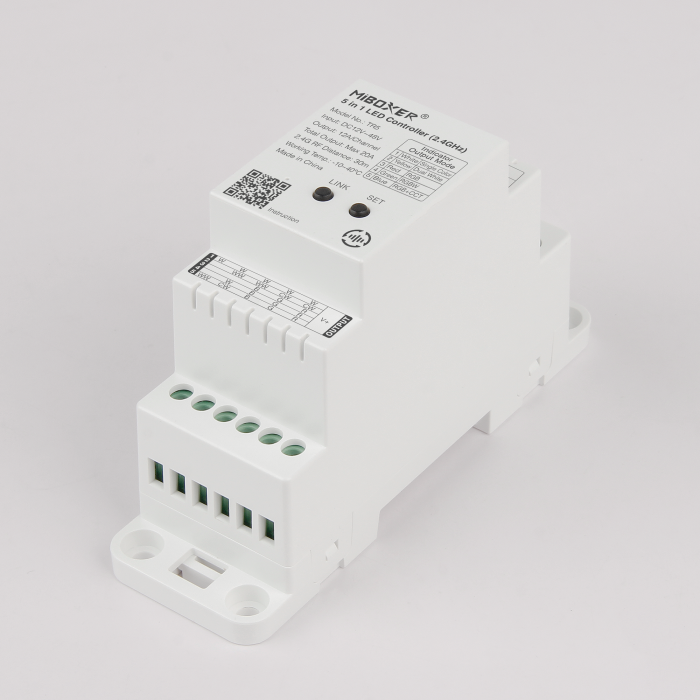

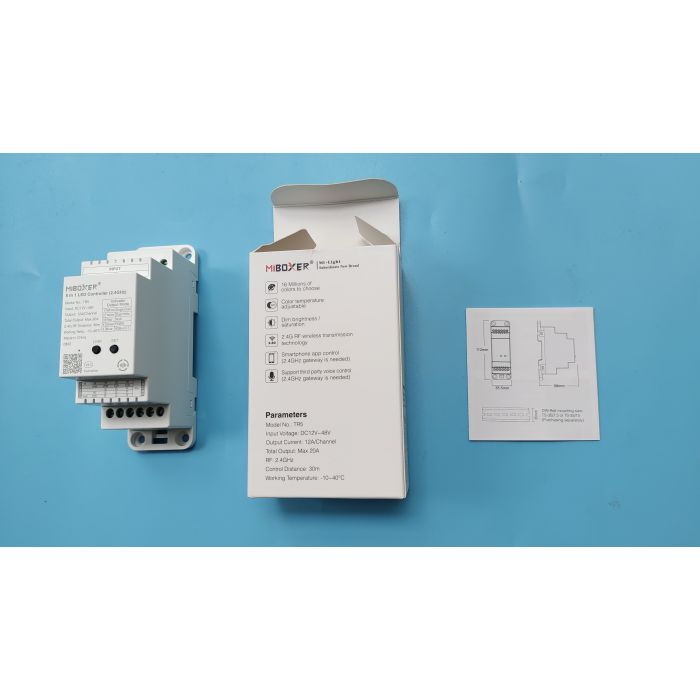

MiBoxer TR5 MiLight 5 in 1 Rail Track LED Controller
- Buy 100 for $8.95 each and save 10%
MiBoxer TR5 MiLight 5 in 1 Rail Track LED Controller
Made in Shenzhen of China with reliable quality
We are distributor of MiBoxer&MiLight products, directly from factory, good price
MiBoxer TR5 MiLight 5 in 1 Rail Track LED Controller
2.4Ghz wireless transmitting and remote control technology with fast transmission, stable signal and anti-interference
Compatible with APP and remote control ( Need 2.4GHz gateway)
Wide application for commercial lighting, hotel lighting and home lighting
Can be installed on the standard 35mm universal GE rail
16 million colors adjustable, Saturation, RGB, Brightness, color temperature adjustable
Built-in 18 dynamic mode with jumping, gradually changing( only for 2.4G remote control)
Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
Have DND function, usually used in power failure area and save power
Support TUYA SMART app control (2.4GHz gateway is needed)
Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)
Parameters
| Product Name: | 5 in 1 Track LED Controller (2.4G) |
|---|---|
| Model No.: | TR5 |
| Input Voltage: | DC12-48V |
| Output Current: | 12A/ Single channel |
| Total Output: | Max 20A |
| Protocol: | 2.4GHz RF |
| Control Distance: | 30m |
| IP Rating: | IP20 |
| Working Temperature: | -10~40℃ |
|---|---|
| EMC Standard (EMC): | ETSI EN301 489-1 v2.2.3 (2019-11) ETSI EN301 489-3 v 2.1.1 (2019-03) ETSI EN 301 489-17 v 3.1.1 (2017-02) |
| Safety Standard (LVD): | EN 61347-2-11:2001+A1:2019; EN 61347-1:2015+A1:2018 |
| Radio Equipment (RED): | ETSI EN 300 440 V2.2.1 |
| Certification: | CE, EMC, LVD, RED |
Support Tuya smart app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
35mm Standard Rail installation, easy operation
Connection Diagram
