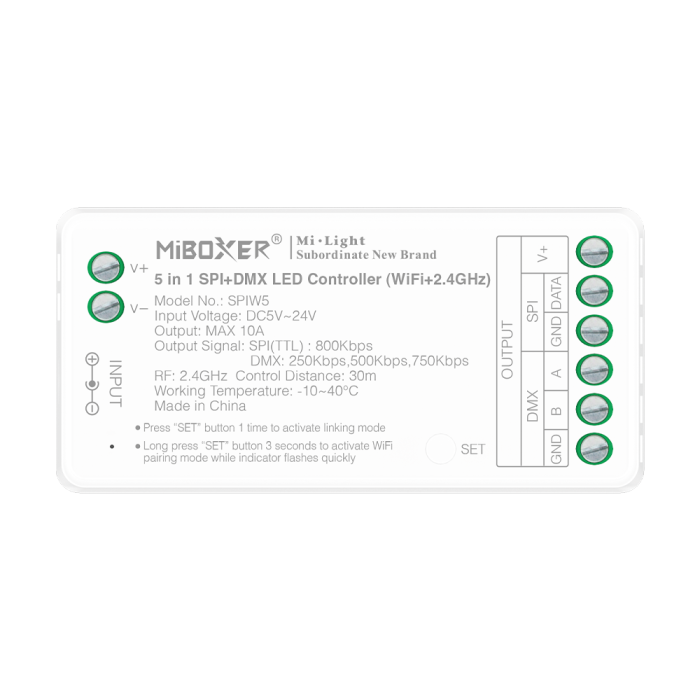

MiBoxer SPIW5 MiLight WiFi+2.4G 5 in 1 SPI+DMX LED Controller

SPIW5  5 in 1 SPI+DMX  WiFi+2.4G LED controller is built in SPI/DMX dual communication protocol, compatible with DC5-24V input, it’s special controller for SPI LED strip light. The controller support WiFi+2.4G wireless transmitting technology

Setting different features like adjust different modes, color, brightness and change dynamic illumination via TUYA SMART APP or C9, B9 remote.

5 in 1 LED controller, single color/CCT/RGB/RGBW/RGBCCT

Color, pixel points, speed, static mode and dynamic mode dimmable

Dynamic mode : 28 kinds of white color for selection, 80 kinds of RGB color for selection, all modes can dim color, brightness, width and speed.

8 kinds of music mode work with built-in microphone or smart phone microphone

Freely switching dynamic and music mode

Setting boot animation via TUYA SMART APP

Output signal : SPI(TTL) 800Kbps, DMX: 250Kbps, 500Kbps, 750Kbps

Have DND mode, usually used for power failure area to save power

Parameters

Product Name: 5 in 1 SPI+DMX LED Controller (WiFi+2.4G)

Model No.: SPIW5

Input Voltage: DC 5V~24V

Output Current: maximum 10A

Output signal:

SPI(TTL) 800Kbps (Max 1024 Pixel)

DMX: 250Kbps(Max 256 Pixel)

DMX: 500Kbps(Max 512 Pixel)

DMX: 750Kbps(Max 768 Pixel)

Standby current: 20mA

Protocol: WiFi + 2.4GHz RF

Control Distance: 30 meters

IP Rate: IP20

Working Temperature: -10~40°C

Dimension: 74.5*36*17mm

EMC Standard (EMC):

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-17 V3.2.4

Safety Standard (LVD): EN 62368-1; 2020+A11;2020

Radio Equipment (RED): ETSI EN 300 440 V2.2.1

Certification: CE, EMC, LVD, RED

Warranty: 5 years



Connection Diagram



APP control
