MiBoxer PLCW1 MiLight Microwave Radar Human Presence Sensor
- Buy 100 for $23.95 each and save 10%
MiBoxer PLCW1 MiLight Microwave Radar Human Presence Sensor
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer PLCW1 MiLight Microwave Radar Human Presence Sensor
Designed by PLC control solution, simple wiring diagram
TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc.
Features
Designed by PLC control solution, simple wiring diagram and work with wifi+2.4G wireless technology to achieve smart control.
TUYA SMART APP remote control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
16 million colors for selection, dimmable for rgb &cct& brightness
One controller max paired with 12pcs 2.4G RF remote ( control distance 30m)
Built-in 18 dynamic mode with jumping, gradually changing ( only for 2.4G remote control)
Auto-forwarding: Automatically forward the remote control signal to another controller, making the remote control distance infinite
Automatic synchronization: The same dynamic mode is automatically synchronized, so that the mode is always consistent
Have DND function, usually used in power failure area and save power
Support TUYA SMART app control (2.4GHz gateway is needed)
Support third party voice control like Alexa, Google assistant,Yandex Alice, Tmall Genie,Baidu and Xiaomi (2.4GHz gateway is needed)

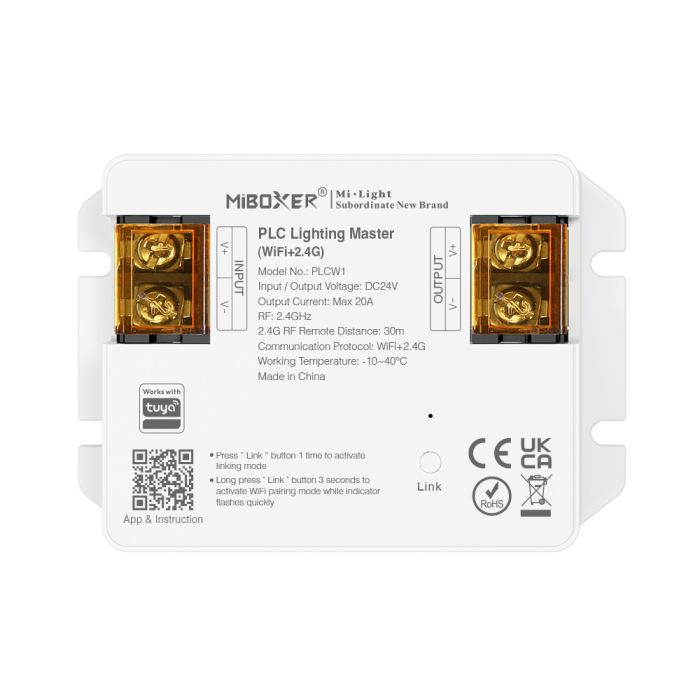

Product Name: PLC Lighting Master (WiFi+2.4G)
Model No.: PLCW1
Input Voltage: DC 24V
Total Output: Maximum 20A
Protocol: WiFi+2.4GHz
Control Distance: 30 meters
IP Rate: IP20
Working Temperature: -10~40℃
WIFI Standard: IEEE 802.11b/g/n 2.4GHz
EMC Standard (EMC):
ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD):
EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, RED
Support Tuya smart app control, no need 2.4G gateway
Support third party voice control
Connection Diagram
