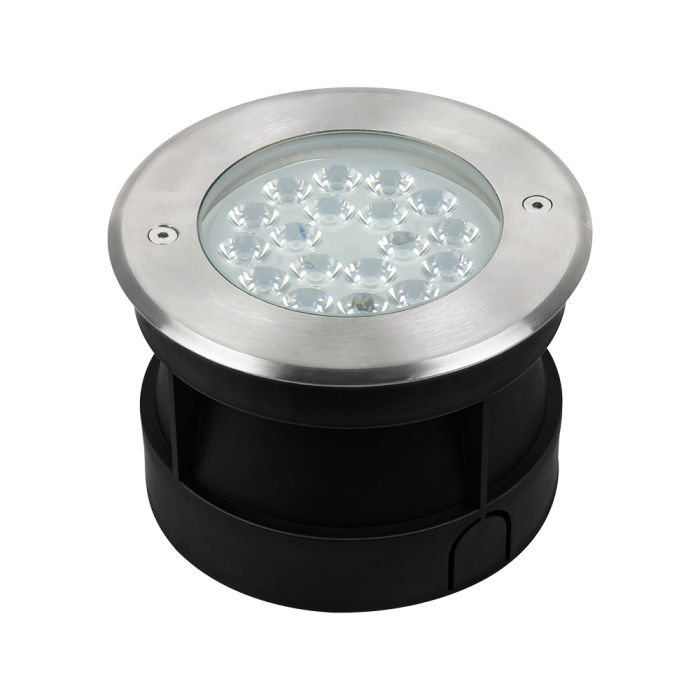

MiBoxer PLC-RD3 MiLight 9W RGB+CCT LED underground Light
- Buy 100 for $48.50 each and save 8%
MiBoxer PLC-RD3 MiLight 9W RGB+CCT LED underground Light
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer PLC-RD3 MiLight 9W RGB+CCT LED underground Light
16 million colors for selection, dimmable for RGB& cct& brightness
Brightness and color temperature adjustable
Working with master controller to adjust rgb& cct& brightness& saturation
IP68 waterproof
Features
Designed by PLC control solution, simple wiring diagram.
Working with master controller control to dim brightness, create scenes, timer, music rhythm, biological rhythm, sleeping mode…etc, support 2.4G remote control as well.
Parameters
16 million colors for selection, dimmable for RGB& cct& brightness
Working with master controller to adjust RGB& cct& brightness& saturation
304 stainless steel
IP68 waterproof
Product Name: RGB+CCT LED Underground Light
Model No.: PLC-RD3
Input Voltage: DC 24V
Power: 9W（R, G, B: 3W, CW: 7W, WW: 7W)
CRI: >80
Color temperature:2700K~6500K
Luminous Flux: 610LM
Luminous efficiency: 95LM/W
Beam Angle: 15°
IP Rate: IP68
Working Temperature: -10~40℃
WIFI Standard: IEEE 802.11b/g/n 2.4GHz
EMC Standard (EMC):
ETSI EN301 489-1 v 2.2.3 (2019-11)
ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD):
EN 61347-1：2015+A1: 2021
EN 61347-2-11: 2001+A1:2019
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Connection Diagram
Need to work with master controller
