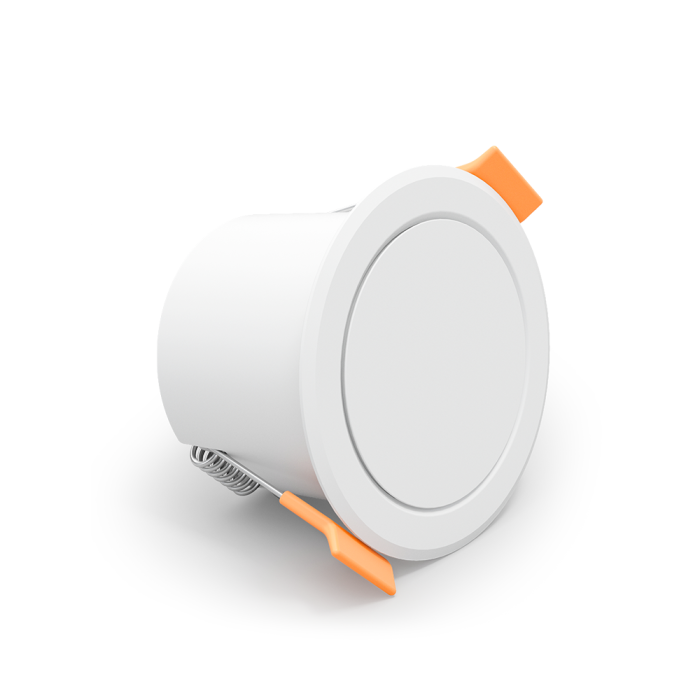

MiBoxer HPS1-RF MiLight Microwave Radar Human Presence Sensor

MiBoxer HPS1-RF MiLight Microwave Radar Human Presence Sensor

One Host, Multiple Nodes, Zero Blind Spots

Single-point triggering with network-wide response-smart collaboration between nodes ensures continuous and reliable lighting control at all time

Features

Microwave radar humanity presence sensor combined radar technology with smart calculation and non-contact detecting device. High sensitive ability to detect tiny actions like breathing or chest expansion, reacting static humanity presence.

Working with smart lighting, turn on light while detecting humanity and turn off light while nobody is detected.

It can work individually or create networking for multi devices depends on different applications.

The rest devices will be tiggered if any single one is detected and ensure that the full range can be detected without any blind area.

The detecting distance from 3m to 8m, it can be set up via DIP switch

Parameters

Product Name: Microwave Radar Human Presence Sensor

Model No.: HPS1-RF

Input Voltage: AC100-240V 50/60Hz

Output Current: maximum 10A

Microwave Frequency: 24GHz

Detection Distance: 3~8 meters

Protocol: 2.4GHz RF

Control Distance: 30 meters

IP Rate: IP20

Working Temperature: -10~40°C

EMC Standard (EMC):

ETSI EN 301 489-1 V2.2.3

ETSI EN 301 489-3 V2.3.2

Safety Standard (LVD):

EN 61347-2-11: 2001+A1: 2019

EN 61347-1: 2015+A1:2021

EN 62493: 2015+A1:2022

Radio Equipment (RED): ETSI EN 300 440 V2.2.1

Certification: CE, EMC, LVD, RED

Detecting Angle and distance

Detected even human
body without any actions

Moving detection radius: 5-8 meters
Available detection radius: 4-5m

Detection Angle: 120°



Offline Application Connection Diagram

Usually used for narrow area



Networking application connection Diagram

Wide Application

Completing configuration in every area and master sensor can be installed in any place
Attention: the distance between two sensors must be over 2meters
