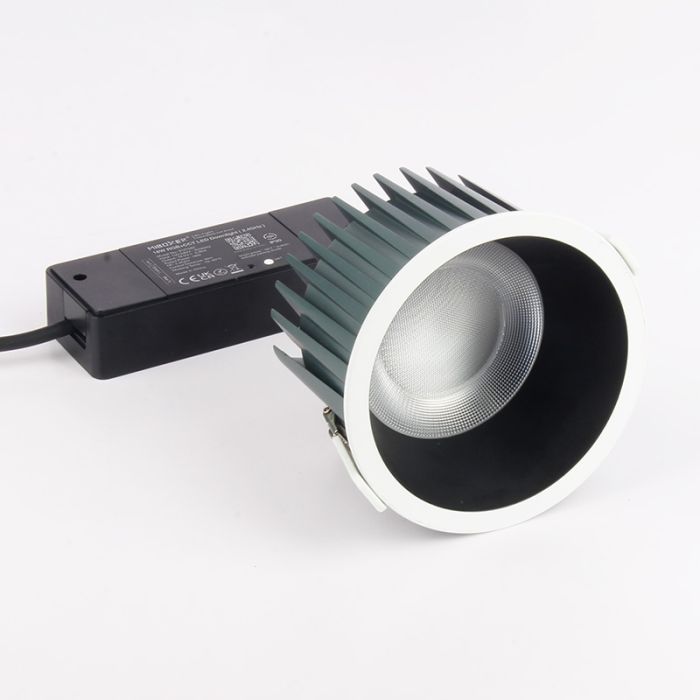

MiBoxer FUT082ZR MiLight 18W waterproof RGB+CCT LED Downlight
- Buy 100 for $23.25 each and save 10%
MiBoxer FUT082ZR MiLight 18W Waterproof RGB+CCT LED Downlight
Made in Shenzhen of China with reliable quality
we are distributor of MiBoxer&MiLight products, good price
MiBoxer FUT082ZR MiLight 18W Waterproof RGB+CCT LED Downlight
Zigbee 3.0 standard protocol
Waterproof IP54
High CRI COB LED Chip
2.4G RF remote controllable
Color temperature and brightness adjustable
Contrl distance: 30 meters
Features
Waterproof downlight with 2.4G wireless transmission technology, dim brightness or CCT to create different lighting scene and improve lighting experience.
Zigbee 3.0 standard protocol
IP54 Waterproof，60° optical design, UGR≤19
RGB+CCT+brightness dimmable
2.4G wireless transmission technology
Smooth dimming with 4096 level, mini brightness 0.1%
Auto-forwarding: Automatically forward the remote control signal to another master box, making the remote control distance infinite
Auto-synchronization: The same dynamic pattern is automatically synchronized to keep the pattern consistent
Have DND function, usually used in power failure area and save power
Support TUYA SMART app control (2.4G gateway is needed)
Support third party voice control like Alexa, Google assistant, Yandex Alice, Tmall Genie,Baidu and Xiaomi
Parameters
Product Name: Waterproof LED RGB+CCT downlight
Model No.: FUT082ZR
Input Voltage: AC100~240V 50/60Hz
Power: 18W
PF: >0.5
CRI: >80
Color temperature: 2700~6500K
Luminous Flux: 1600LM
Luminous efficiency: 90LM/W
Beam Angle: 60°
RF: Zigbee 3.0+2.4GHz
Control Distance: Zigbee: 50M(open area) / 30m(2.4GHz)
IP rate: IP54
Working Temperature: -10~40℃
Hole Size: 95mm
Dimming Grayscale: 4096 levels
Dimming Range: 0.1%-100%
Dimming Curve: Logarithmic
EMC Standard (EMC): ETSI EN301 489-1 v 2.2.3 (2019-11); ETSI EN 301 489-3 v 2.3.2 (2023-01)
Safety Standard (LVD): EN IEC 60598-1:2021+A11:2022; EN 60598-2-2:2012; EN IEC 62031:2020+A11:2021; EN 62493:2015+A1:2022
Radio Equipment (RED): ETSI EN 300 440 V2.2.1
Certification: CE, EMC, LVD, RED
Support Tuya smart app control (2.4GHz gateway is needed)
Support third party voice control (2.4GHz gateway is needed)
Application Diagram
