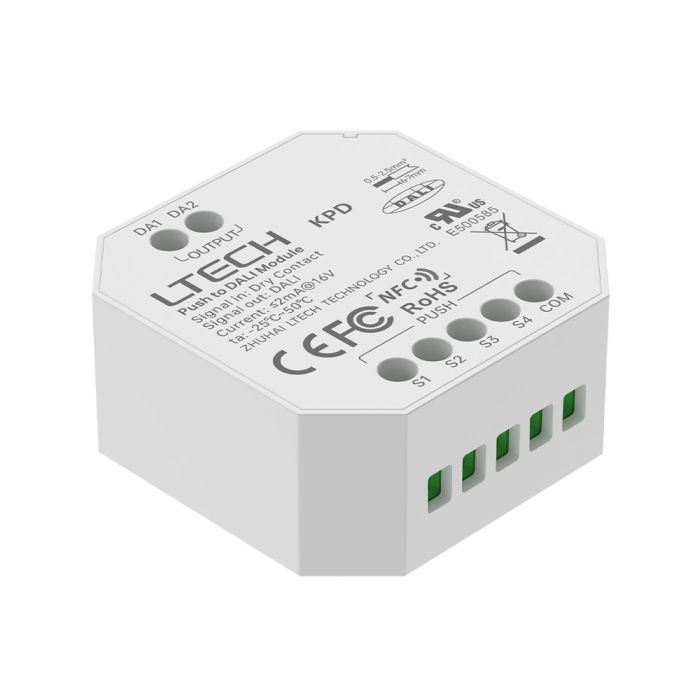

LTech KPD K Series Push to DALI Module

Freely configure DALI command types—such as on/off, dimming, color adjustment, and brightness levels—via the NFC Lighting app;

Supports various DALI device types, including DT6, Tc, XY coordinates, and RGBWAF;

Supports two operating modes: Master Mode and Slave Mode;

Supports up to 4 input control channels, compatible with momentary switches, rocker switches, and sensor devices;

Master Mode supports broadcast, single-address, group-address, and scene settings;

Each self-resetting switch channel in Master Mode supports three operations—short press, long press, and double-tap—with multiple command loops configurable for each operation;

Each toggle switch channel in Master Mode supports two operations—on and off—with corresponding commands configurable for each operation;

Each corridor light channel in Master Mode supports configuration of parameters such as detection time, standby time, and detection brightness;

Powered via the DALI bus, no additional power supply is required;

Compact size and easy installation;

compatible with Chinese, European, and U.S. standard flush-mounted junction boxes.
