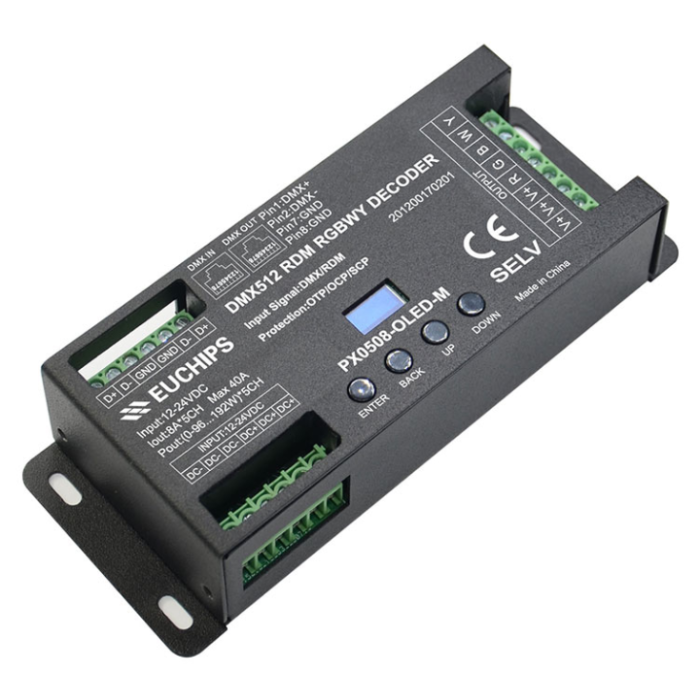

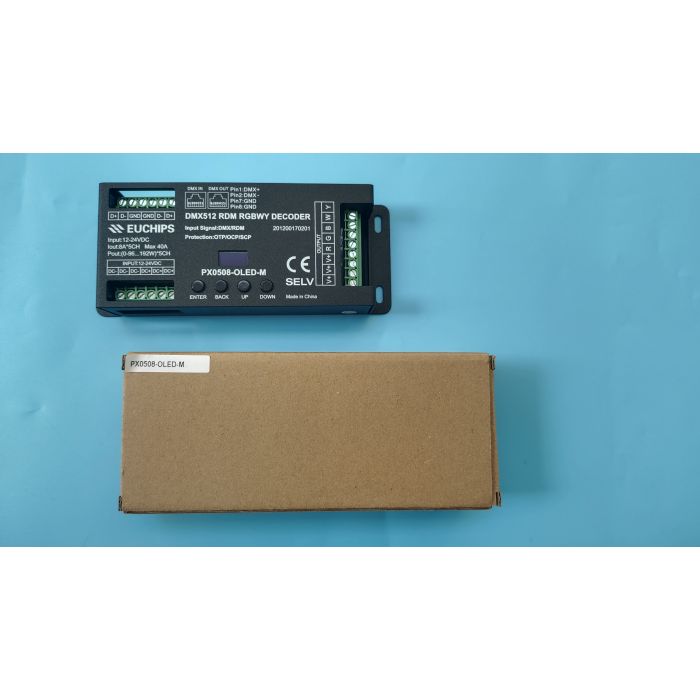

Euchips PX0508-OLED-M 12-24VDC 8Ax5CH DMX512 Decoder

Euchips PX0508-OLED-M 12-24VDC 8Ax5CH DMX512 Decoder

Summary

Welcome to use Px series DMX512/RDM decoder & driver. Px series adopt the advanced micro- computer control technology and converted the DMX512 , RDM/2009 digital signal widely used in   international to the PWM Control signal. 1 ~5 channels output for option and each channel able to  achieve 256 or 65536 gradations of controling, and also it can be used as the connector of pc digital light controller and analog light modulator. It is mainly used for the controlling of buildings & lights applied LED.

Feature

· 5 channels output, the maximum current of 8A/CH for RGBWY decoder, up to 960W OLED Screen and touch button , more convenient operation
· 27 sence modes built-in , with speed and brightness adjust function
· 5 kinds of optional: DIM , CT, RGB, RGBW, RGBWY
· 2 kinds of DMX Ports: T-block  RJ45
· short-circuit protection , overload protection , over-temperature protection · Fast self-testing function
· 8 bit   16 bit resolution optional(master mode support 8bit only) · dimming curve: liner, log
· Meets DMX512/1990 , RDM /2009 protocol
· supported RDM Parameters:

DlSC_UNQUE  BRANCH

DlSC  MUTE

DlSC UN MUTE DEVICE INFO

SOFTWARE VERSON LABEL

DMX512/RDM START ADDRESS IDENTIFY DEVICE

MANUFACTURER LABEL

SUPPORTED PARAMETERS

Technical parameter

Model: PX0508-OLED-M

Input Signal: DMX512 1990/RDM 2009

Input Voltage: 12-24V

Output Voltage: 12-24V

Output Current: 8A*5CH MAX.40A

Control Mode: (0~96W…192W)*5CH MAX.960W

Dimming Curve: DIM/CT/RGB/RGBW/RGBWY

Grey Level: Linear/Log

Protection: Short-circuit/ Over Load / Over Temperature

Dimension: 160*62*32.6mm(L*W*H)

G.W.: 322g

Operation Temperature: -20~50℃

Relative humidity: 20%~90%RH

Lifetime: 50,000h

Warranty: 5 years
